| 101S Series of Fully Hydraulic Steer Control Unit |
| has same Connection Data with 101 series, In addition, it contains relief valve, overload valve, |
| fill oil valve and entry check valve, which can be combined according to your special requirements. |
| Compact structure, Small volume, Easy to use, and complied with international standard. |
| 型号 TYPE |
排量 Displacement
(ml/r)
|
额定流量Rated Flow
(l/min)
|
最大入口压力
Max.input Pressure(Mpa)
|
最大连续背压
Max.Cont.Back Pressure(Mpa)
|
正常输入扭矩
Normal Cont.Back Pressure(Mpa)
|
长度 L
Length (mm)
|
重量 Weight (kgs)
|
| 50 |
50 |
5 |
17.5 |
2.5 |
<2.5 |
131 |
5.4 |
| 63 |
63 |
6 |
17.5 |
2.5 |
<2.5 |
133 |
5.5 |
| 80 |
80 |
8 |
17.5 |
2.5 |
<2.5 |
135 |
5.6 |
| 100 |
100 |
10 |
17.5 |
2.5 |
<2.5 |
138 |
5.7 |
| 125 |
125 |
13 |
17.5 |
2.5 |
<2.5 |
141 |
5.9 |
| 160 |
160 |
16 |
17.5 |
2.5 |
<2.5 |
146 |
6.0 |
| 200 |
200 |
20 |
17.5 |
2.5 |
<3 |
151 |
6.2 |
| 250 |
250 |
25 |
17.5 |
2.5 |
<3 |
157 |
6.5 |
| 280 |
280 |
28 |
17.5 |
2.5 |
<3 |
162 |
6.6 |
| 315 |
315 |
32 |
17.5 |
2.5 |
<3 |
167 |
6.9 |
| 400 |
400 |
40 |
17.5 |
2.5 |
<3 |
177 |
7.2 |

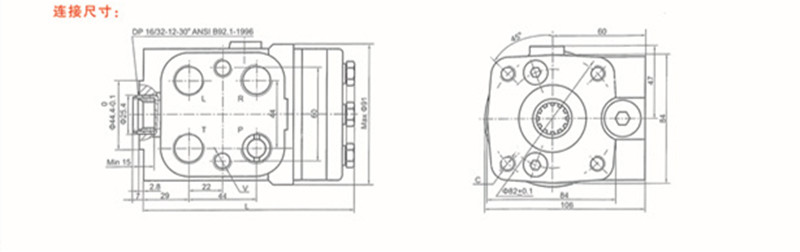

Connection Data:
101S系列全液压转向器
101S系列转向器其安装尺寸与101系列相同，但在转向器内部集成了安全阀、过载阀、补油阀、入口单向阀，可根据不同要求任意组合，结构紧凑，体积小，使用方便，符合国际标准.
|
