060 Monolithic Steering Control Unit




060 Seiries Hydraulic Steering Control Unit
 is a Monolithic Fully Hydraulic Steer Control Unit with the function of all combined valves,
 Including Entry check valve, Relief valve, Manual steering check valve, Cushion valve and Fill oil valve.
 Compact structure and easy mounting.

 Displacement(ml/r)   50 63  80 100 125   160  200  250  315  400  500

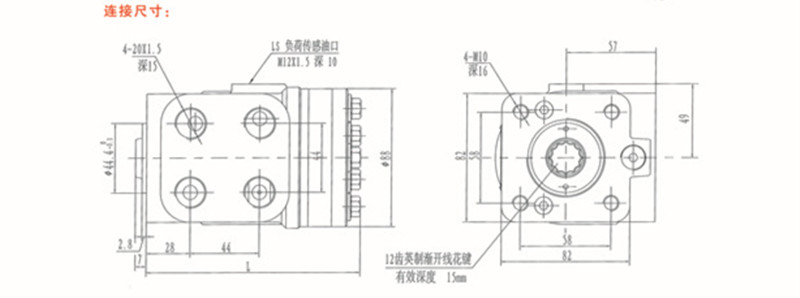

  Length(L)  130.5  132.5  135  138  138  143  148  154  164  174  186


060系列转向器是带有全部组合阀功能的整体式全液压转向器,包含了入口单向阀,安全阀,人力转向单向阀,缓冲阀和补油阀。因此结构凑,安装方便。
